thermally broken aluminium dors

ALIPLAST STAR DOORS

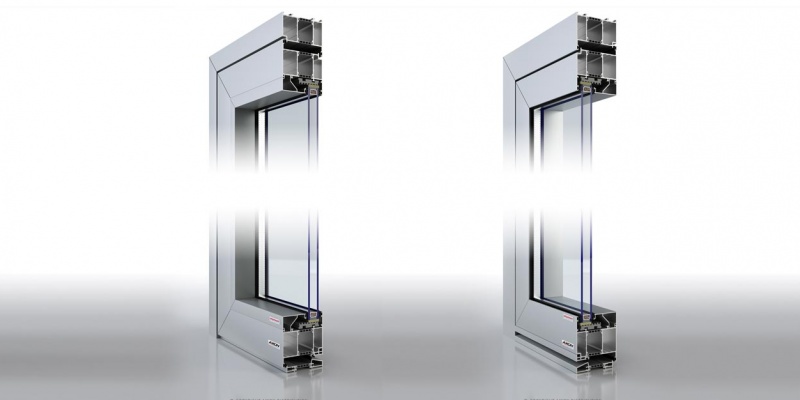

Considerably increased thermal insulation, three-chamber profile is designed for windows, doors and external window displays.

Triple glazed aluminium doors

Less amount of glazing beads and seals is needed to mount and seal glazing units in the rebates of the sashes. 24 to 82mm double or triple glazing units can be applied.

Insulated aluminium doors

Application of 45mm thermal break made of innovative materials and a special cellular seal enhances durability and thermal insulation of the profile. Depending on the glazing unit, heat transfer coefficient for the Superial profile may reach Uf=1,6 W/m2*K or better. Additionally the profile shows effective sound insulation.

Modern design

Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.

Deep aluminum profiles

Star are 90mm installation depth profiles. This is 45mm more than industry standard, giving architects and constructors more flexibility for any project design and application. The Star system allows designing large-size constructions.

Bespoke aluminium doors in accordance with specifications

Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.

Installation depth  90mm
Heat transfer coefficient  Uf = 1,21 W/m2*K
Profile type  warm
Weather stripping  Double external with EPDM
Available pane fixations thicknesses  14mm - 73mm
Standard glazing  4/16Ar/4 (Rw=31dB, Lt=80%, g=63%)
Standard handle  Standard
Warranty  3 years*
Certificates  CE
Order processing time  from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
