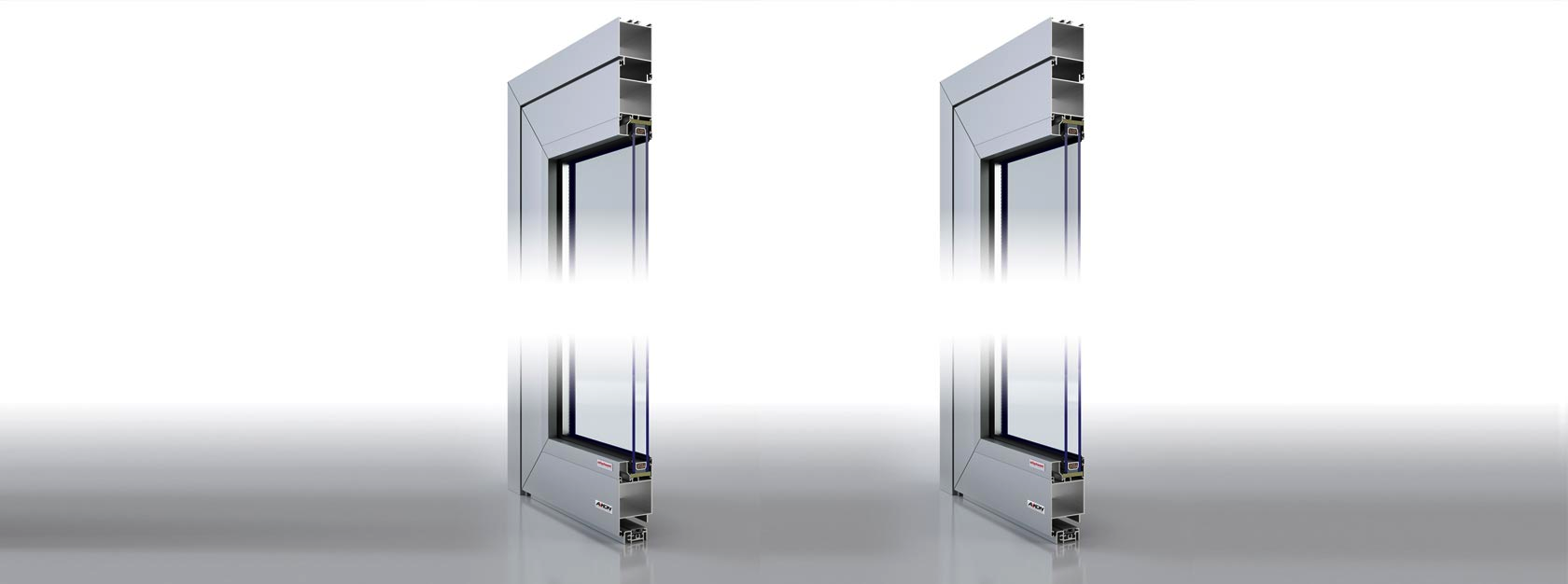

ALIPLAST ECONOLINE DOORS
Non-insulated, three-chamber Econoline profiles are designed for construction of external and internal wall partitions consisting of glazed and fixed elements, doors and windows. Econoline profile allows to manufacture sliding and double swing doors.
Glazed wall partitions
The Econoline profile is designed for the construction of glazed segments of wall partitions for commercial and industrial buildings. These segments may be combined with system windows and side-hung, sliding and double swing doors.
Modern design
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
Deep aluminum profiles
Econoline are 51mm installation depth profiles. This is 6mm deeper than industry standard, giving architects and constructors more flexibility for any project design and application.
Aluminum doors with single or double glass panes
Single glass panes or glazing units of 3 up to 38mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
| Installation depth | 51mm |
| Heat transfer coefficient | Lack of research - cold profile |
| Profile type | cold |
| Weather stripping | Double external with EPDM |
| Available pane fixations thicknesses | 3 mm - 38 mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
*detailed warranty conditions available from your sales representative
