Aluminum Windows

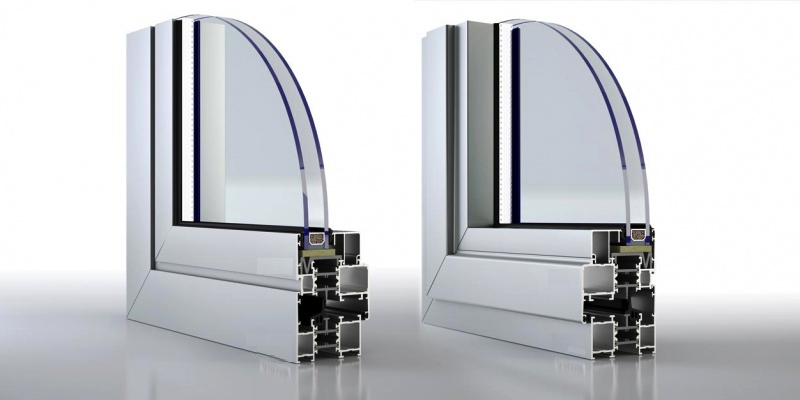

ALIPLAST IMPERIAL
Insulated, three-chamber thermally broken profile designed for display windows, windows and doors.
Aliplast Imperial: insulated aluminum windows
Application of polyamide and fiber glass supported 24mm thermal break enhances durability and thermal insulation of the profile. Heat transfer coefficient for the Imperial profile is Uf = 1,9 W/m2*K.
MODERN DESIGN OF THE WINDOW - ALIPLAST IMPERIAL
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
IMPERIAL ALUMINUM - DEEP ALUMINUM PROFILES
Aliplast Imperial are 65mm installation depth profiles. This is 20mm deeper than industry standard ensuring the profile provides perfect statics giving architects and constructors more flexibility for any project design and application. The Imperial system allows designing large-size constructions.
Aluminum Imperial windows with single or double glass panes
Single glass panes or glazing units of 4 to 51mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
ARCHED, TRIANGULAR, TRAPEZOIDAL AND CIRCLE WINDOWS
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
BESPOKE ALUMINIUM WINDOWS AND DOORS IN ACCORDANCE WITH SPECIFICATIONS
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you can also find Aluplast windows.
| Installation depth | 65mm |
| Heat transfer coefficient | Uf = 1,9 W/m2*K |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 4 mm – 51mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |

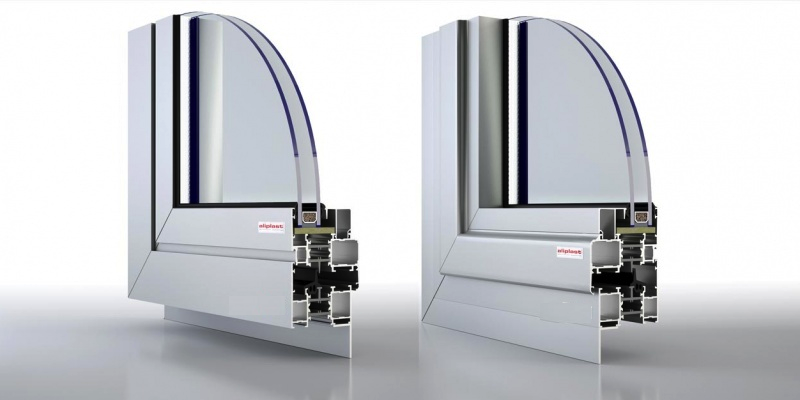

ALIPLAST IMPERIAL RENOVATION
Angles are available to be used for Imperial windows. 12, 15, 20, 25, 30, 35, 40, 50, 60, 80, 100 [mm] angles available. On the photo: profile with 30 mm angle.
Replacing old windows - fast installation, without damage to the building
Renovation windows - ideal solution for replacing old windows. Installation of renovation windows is quick and easy. It does not require a complete dismantling of the old jambs, making the walls and facade remain without any damage. This prevents from time-consuming and costly renovation. Simply remove the old sashes, posts and hardware. Jambs needing replacement do not have to be taken out. They will be completely covered with renovation fin from the inside. From the outside the old jamb is covered by made-to-measure trims.
RENOVATION FRAMES FOR HISTORIC BUILDINGS
Non-invasive installation of a renovation window makes it the best and often the only solution to be used in historic buildings. It allows inserting a new window with high thermal and acoustic performance while minimizing the risk of damage to the construction components.
BESPOKE ALUMINIUM WINDOWS AND DOORS IN ACCORDANCE WITH SPECIFICATIONS
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
| Installation depth | 65mm |
| Heat transfer coefficient | Uf = from 1,57 W/m2*K |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 4 mm - 51 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
ALIPLAST IMPERIAL RENOVATION 22
Aliplast angles are available to be used for Triline windows.
Replacing old windows - fast installation, without damage to the building
Renovation windows - ideal solution for replacing old windows. Installation of renovation windows is quick and easy. It does not require a complete dismantling of the old jambs, making the walls and facade remain without any damage. This prevents from time-consuming and costly renovation. Simply remove the old sashes, posts and hardware. Jambs needing replacement do not have to be taken out. They will be completely covered with renovation fin from the inside. From the outside the old jamb is covered by made-to-measure trims.
RENOVATION FRAMES FOR HISTORIC BUILDINGS
Non-invasive installation of a renovation window makes it the best and often the only solution to be used in historic buildings. It allows inserting a new window with high thermal and acoustic performance while minimizing the risk of damage to the construction components.
| Installation depth | 65mm |
| Heat transfer coefficient | Uf = from 1,57 W/m2*K |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 4 mm - 51 mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |

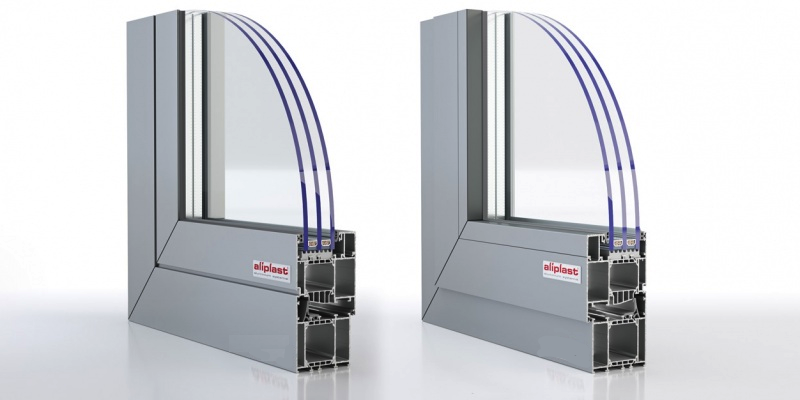

ALIPLAST GENESIS 75
Three-chamber window and door system with increased thermal performance.
Aliplast Genesis 75 - thermally broken aluminium windows
The Aliplast Genesis 75 system takes advantage of just released state-of-the-art insulation materials. In addition to the main window seal it has been designed with an additional seal that improves Genesis 75 thermal performance, providing the profile with very high air and water tightness. The heat transfer coefficient for Genesis windows can be as low as Uf = 0.84 W/m2*K. The Genesis 75 window and door system sets new standards without compromising unparalleled ergonomics.
ALIPLAST GENESIS 75 – A NUMBER OF APPLICATIONS
Genesis 75 profiles are based on a 75mm frame elements allowing different types of windows, shop windows, and exterior doors to be designed. Such variety makes Genesis 75 a popular choice for public buildings as well as architects planning individual projects.
ALUMINIUM WINDOWS WITH ADVANCED GLAZING
Glazing units ranging from 24mm to 56mm are fixed and sealed in the dedicated window and door profiles supported with appropriate aluminium beading and EPDM glazing sealing
Modern window design
Wide range of aluminium profiles, RAL colours as well as wood-like coatings available allow our windows and doors to be individually tailored to any project requirements offering innovative design and improved appearance.
ALUMINIUM WINDOWS TO SIZE AND SPECIFICATION
You can choose wide range of dimensions, colours, number of window sections and combination of sashes and fixed elements as well as additional profiles. With the variety of applications we are also able to supply windows with extra-large dimensions for customised orders. We are experienced in manufacturing curved, triangular, trapezoid, and round windows. Order customisation is available even if just one window is ordered. Profile thermal performance could be enhanced through application of profile thermal inserts or dedicated glass unit thermal supports.
| Aliplast Genesis 75: Installation depth | 75mm |
| Heat transfer coefficient | Uf = 1.05 W / m2 * K (frame: GN011, sash: GN023) |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 9 mm – 65 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |

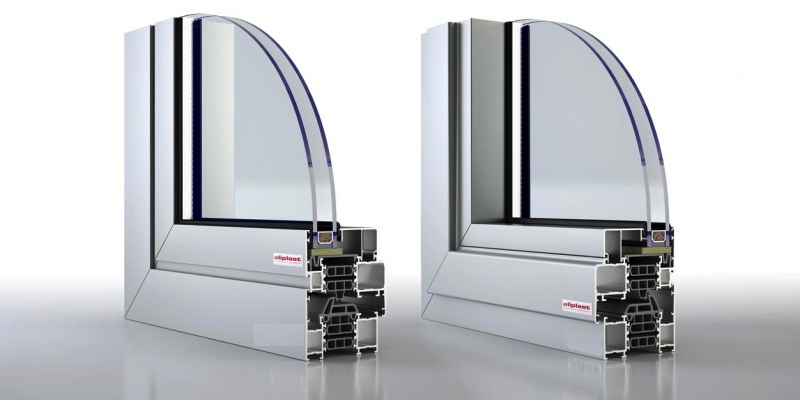

ALIPLAST SUPERIAL
Increased insulation, three-chamber profile designed for display windows, windows and doors.
Aluminum windows
Application of polyamide and fiber glass supported, three-chamber thermal breaks enhances durability and thermal insulation of the profile. Additional weather protection is provided by the cellular, center seal and special glazing seals. The Superial profile shows heat transfer coefficient Uf=1,7 W/m2*K. Better thermal insulation performance can be achieved when special glazing unit is applied. Additionally the profile shows effective sound insulation.
SU HIDDEN SASH
Aluminium profile system dedicated to manufacture open in, tilt and turn, hidden sash windows. SU Hidden Sash allows fixed and openable window sections to look almost identical.
MODERN DESIGN OF THE WINDOW
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
Deep aluminum profiles
Superial are 75mm installation depth profiles. This is 30mm deeper than industry standard, giving architects and constructors more flexibility for any project design and application. The Superial system allows designing large-size constructions.
ALUMINUM WINDOWS WITH THICK GLAZING UNITS
14 to 61mm glazing units are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
ARCHED, TRIANGULAR, TRAPEZOIDAL AND CIRCLE WINDOWS
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
| Installation depth | 75mm |
| Heat transfer coefficient | Uf from 1,7 W/m2*K |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 14 mm – 61 mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
SUPERIAL RENOVATION
There is also available a renovation class of SUPERIAL windows. If you're interested in that , just ask us, or check the catalog for aluminum windows.

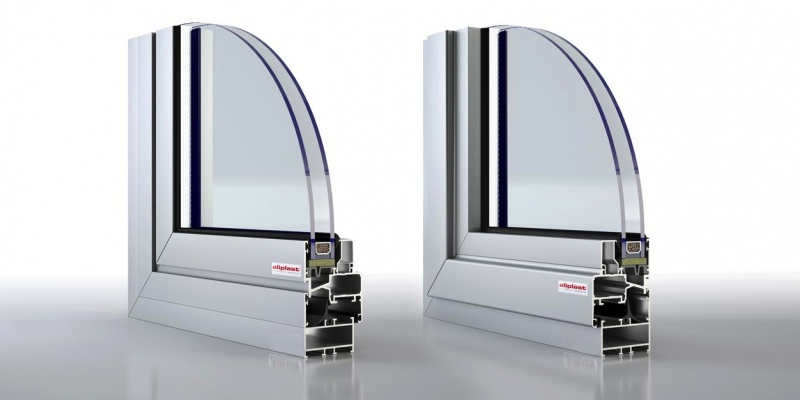

ALIPLAST ECONOLINE
Non-insulated, three-chamber Aliplast Econoline profiles are designed for construction of external and internal wall partitions consisting of glazed and fixed elements, doors and windows.
Glazed wall partitions
The Econoline profile is designed for the construction of glazed segments of wall partitions for commercial and industrial buildings. These segments may be combined with system windows and side-hung, sliding and double swing doors.
MODERN DESIGN OF THE WINDOW
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
DEEP ALUMINUM PROFILES
Aliplast Econoline windows are 51mm installation depth profiles. This is 6mm deeper than industry standard, giving architects and constructors more flexibility for any project design and application.
Aluminum Econoline windows with single or double glass panes
Single glass panes or glazing units of 3 up to 38mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
ARCHED, TRIANGULAR, TRAPEZOIDAL AND CIRCLE WINDOWS
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
| Aliplast Econoline Installation depth | 51mm |
| Heat transfer coefficient | Lack of research - cold profile |
| Profile type | cold |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 4 mm - 37 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
ECOLINE RENOVATION
There is also available ECOLINE RENOVATION GRADE WINDOWS Ask us about them if interested

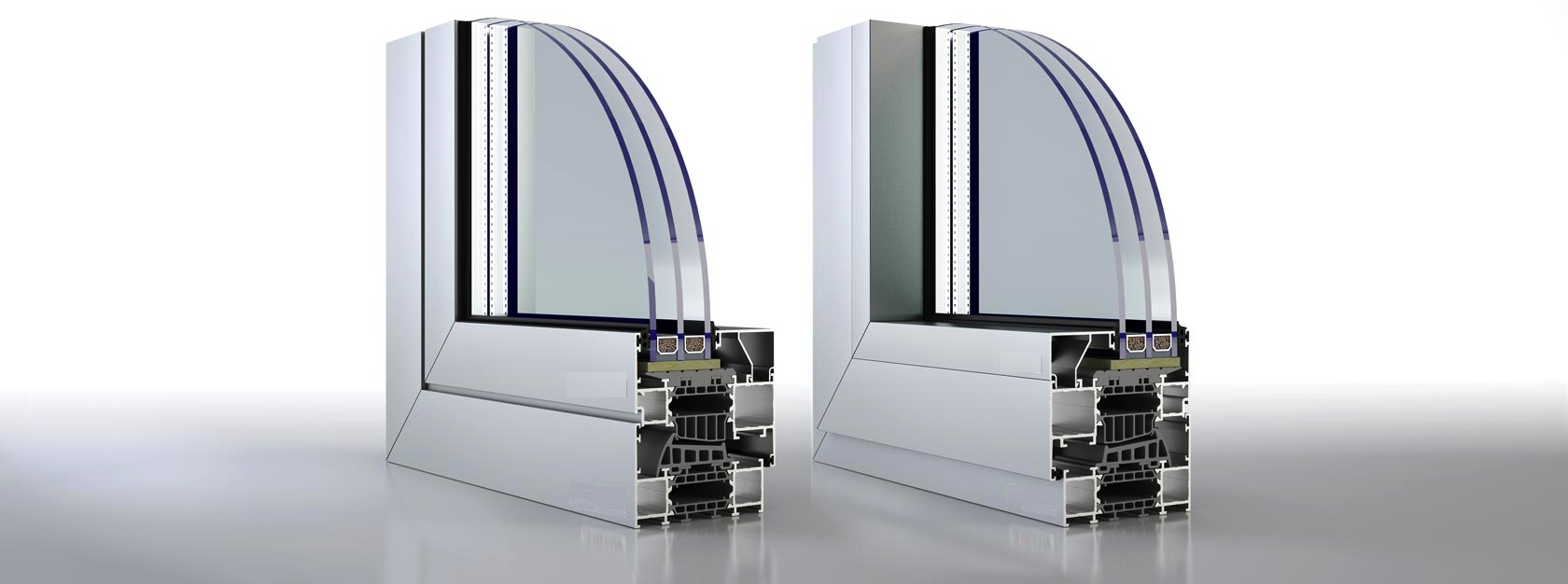

ALIPLAST STAR
Considerably increased thermal insulation, three-chamber profile is designed for windows, doors and external window displays.
Passive House aluminium windows Aliplast Star
Application of 45mm thermal break made of innovative materials and a special cellular seal enhances durability and thermal insulation of the profile. Depending on the glazing unit, heat transfer coefficient for the Superial profile may reach Uf=1,38 W/m2*K. Additionally the profile shows effective sound insulation.
MODERN DESIGN OF THE WINDOW
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
DEEP ALUMINUM WINDOWS PROFILES
Star are 90mm installation depth aliminium windows profiles. This is 45mm more than industry standard, giving architects and constructors more flexibility for any project design and application. The Star system allows designing large-size constructions.
Aluminum windows with thick glazing units
Less amount of glazing beads and seals is needed to mount and seal glazing units in the rebates of the sashes. 24 to 82mm double or triple glazing units can be applied.
ARCHED, TRIANGULAR, TRAPEZOIDAL AND CIRCLE WINDOWS
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
| Installation depth | 90mm |
| Heat transfer coefficient | Uf a partir de 1,38 W/m2*K |
| Profile type | warm |
| Weather stripping | Double external with EPDM |
| Available pane fixations thicknesses | 23 mm - 81 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
Aliplast Windows
When choosing windows for your project or investment, it is worth looking at aluminium windows. Not so long ago, they were mainly used in commercial buildings, but nowadays they are more and more boldly entering our homes and flats.
Aliplast aluminium windows - characteristics
Aliplast aluminium windows are characterised above all by their low weight and very high strength. Contrary to popular opinion, aluminium windows (in spite of their metal frame), thanks to the latest thermal insulation materials, are as energy-efficient as wooden or PVC windows. Aluminium is an extremely mouldable material, so it is possible to create windows even in the most fancy shapes. In addition, due to its high strength and stability, narrow profiles are created from aluminium, making the windows appear larger. In addition, the care of aluminium windows is extremely easy. All you need to do is wipe them down once every few months with water and detergent.
A wide range of Aliplast windows
Aliplast aluminium profile systems allow windows to be made in many shapes and sizes, which makes them extremely versatile. This, in turn, allows the windows to be tailored to the design and needs of the customer. What Aliplast window profiles are currently available on the market?
Aliplast Genesis 75
Genesis 75 is a three-chamber window and door system with increased thermal insulation. It is predicted for the design of window and door structures both in public buildings and in single- or multi-family dwellings. It is possible to choose from a variety of profile finishes, which give the structure its individual character.
Aliplast Econoline
The Aliplast Ecoline system is designed for the construction of interior and exterior architectural elements that do not require thermal insulation. These include windows, doors, and partition wall segments intended for general use in public and industrial buildings.
Aliplast Imperial
The Aliplast Imperial aluminium system is a warm, three-chamber profile designed for use in external structures and all types of shop windows, windows and doors. Profiles in the Imperial system are 65 mm deep, which is 20 mm more than standard profiles available on the market. This solution provides the profiles with excellent rigidity and statics, which gives greater design freedom.
Aliplast Superial
This system is designed for the construction of windows, doors, and display cases with high insulation parameters. These high thermal insulation parameters are achieved through the use of special thermal inserts inserted between the thermal breaks and around the glass. The Aliplast Superial system allows modern window construction solutions to be designed in many variants. It is used in the design of residential and public buildings.
Aliplast Star
Aliplast Star is a modern aluminium system for designing windows and doors requiring very good thermal insulation. It is particularly recommended for low-energy buildings and those undergoing thermomodernisation. Depending on the glazing used, the heat transfer coefficient for the Star profile may be as high as Uf = 1.38 W/m2*K. The profile is also characterised by high acoustic insulation.
Colours of aluminium windows from Aliplast
Aliplast windows are available in a wide range of colours. In addition, their finish may be matt or glossy. Colours with a fine, heterogeneous structure are also an interesting solution. Very importantly, the paint used to colour the aluminium profiles is weatherproof and mechanically resistant.
Read more about the colour scheme of Aliplast windows:
Aliplast windows at Belfort Distribution
At Belfort Distribution, the purchase of Aliplast aluminium windows, as well as all other goods in our range, is done online. Buying joinery online is already a standard, appreciated by many consumers around the world. Above all, it is a convenient and safe purchasing method, which additionally offers the possibility of purchasing the entire window and door joinery in one place.
Looking for Aliplast aluminium windows for your project? Contact our sales team and they will advise and select the perfect product for your needs.
